Gebeya - Multi-Tenant SaaS Platform

Context

Gebeya Marketplace is a sophisticated multi-tenant SaaS platform using a micro-frontend architecture with Single-SPA. The project orchestrates 13 micro-frontends distributed across 5 modules, supporting 3 distinct user profiles:

1. SaaS Admin (Super Admin) - Global platform management
2. Tenant Admin - Administration of a specific tenant

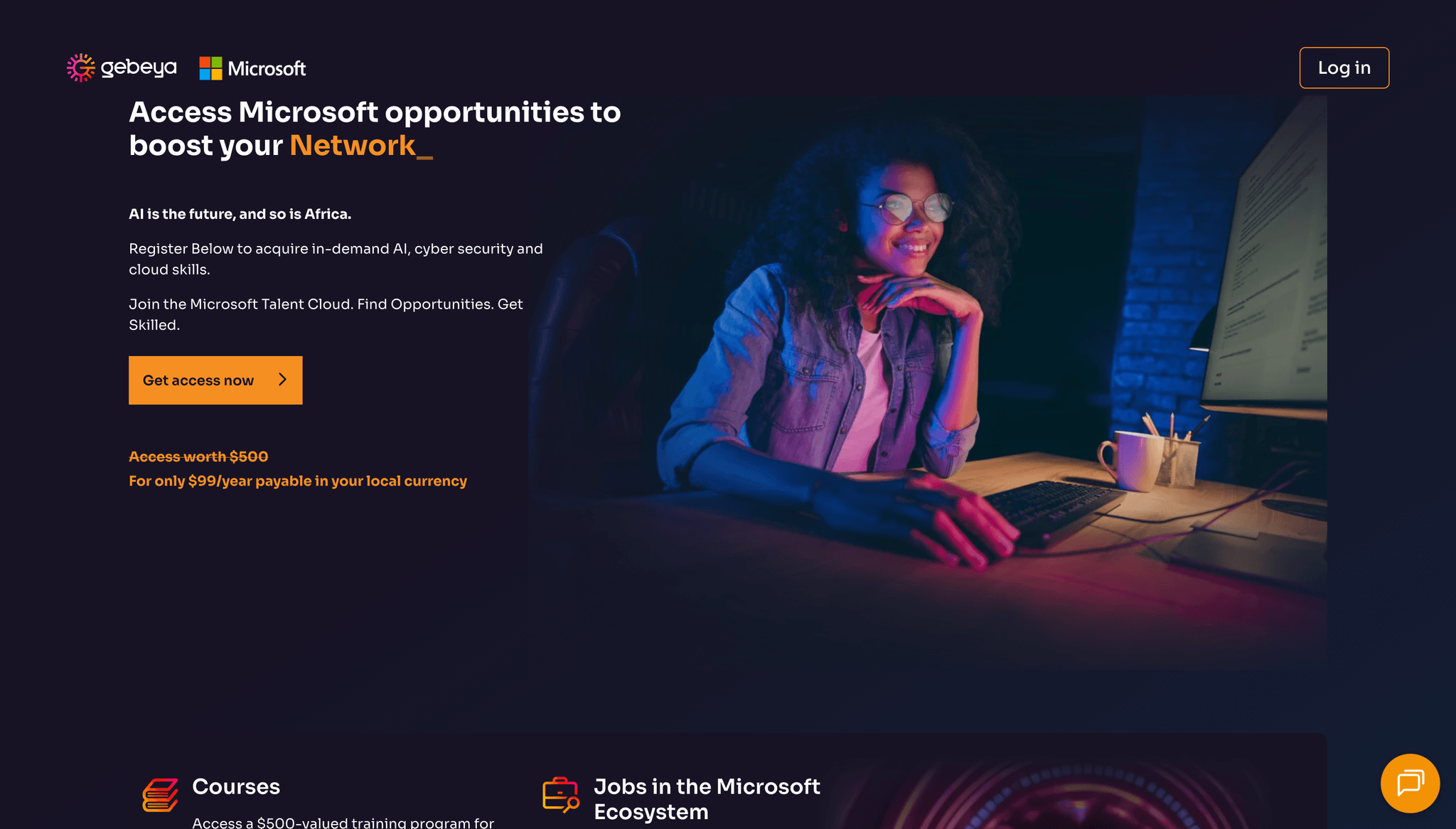

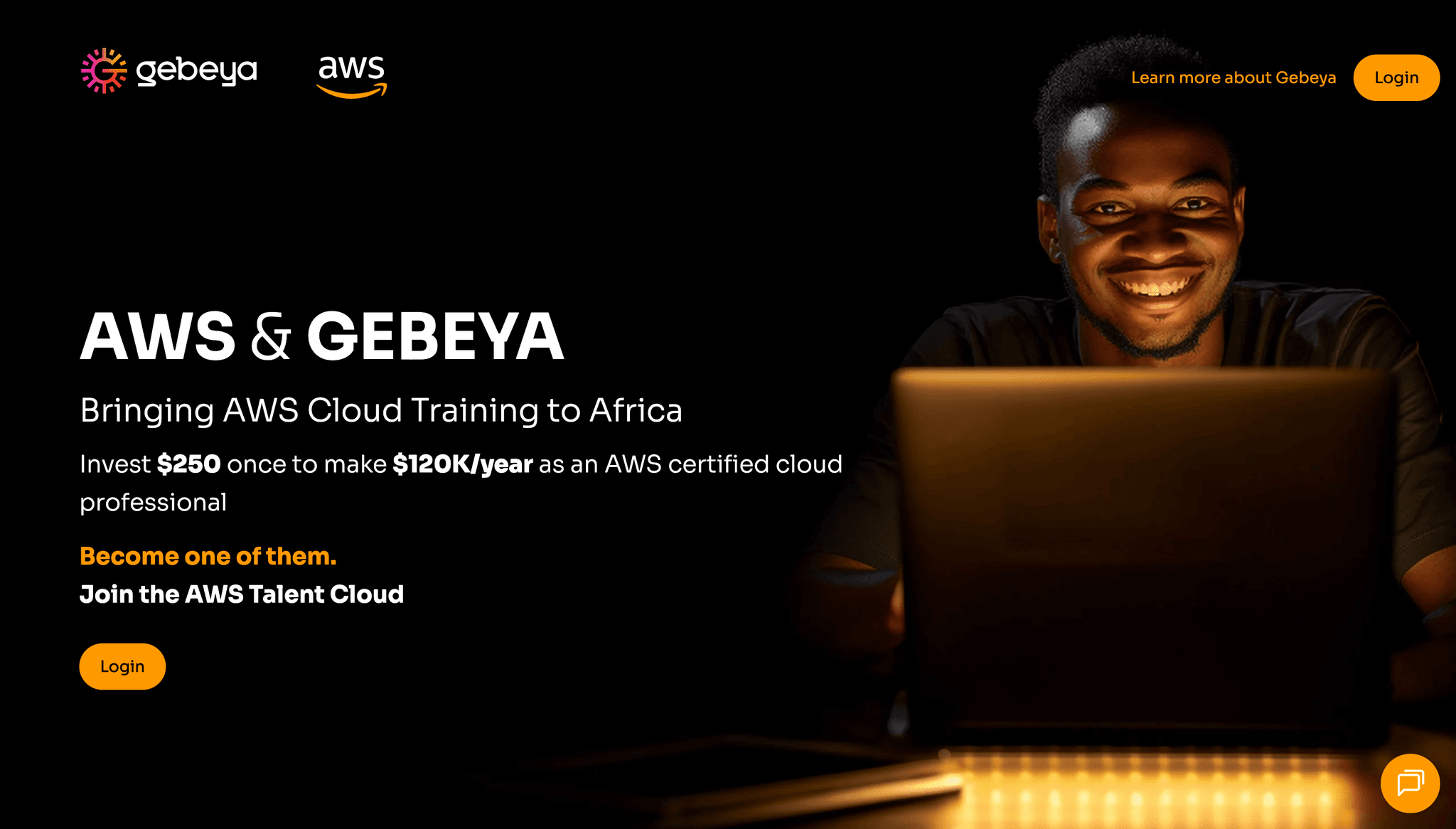

3. Tenant Marketplace - Marketplace interface for end users (Microsoft Talent Cloud, AWS Talent Cloud)

My Role

As Senior Frontend Developer, I was responsible for the implementation of the multi-framework micro-frontend ecosystem using Single-SPA.

Main Responsibilities

• Micro-Frontend Architecture: Design and orchestration of 13 micro-frontends via 3 Single-SPA root configs
• Multi-Framework Integration: Coordination of Angular 15 micro-frontends and integration of React 17 modules
• Shared Modules: Development of 5 reusable core micro-frontends across the 3 profiles
• Build & Deployment: Configuration of 13 independent CI/CD pipelines with deployment on Google Cloud Storage
• Performance Optimization: Lazy-loading, code splitting and initial load optimization

Architecture

The project is organized into 5 modules containing 16 applications (3 root configs + 13 micro-frontends):

┌─────────────────────────────────────────────────────────┐
│                    3 ROOT CONFIGS                        │
│  (Orchestrateurs Single-SPA avec import-maps)           │
└─────────────────────────────────────────────────────────┘
                           │
        ┌──────────────────┼──────────────────┐
        │                  │                  │
        ▼                  ▼                  ▼
┌──────────────┐  ┌──────────────┐  ┌──────────────┐
│ Admin SaaS   │  │ Admin Tenant │  │  Marketplace │
│              │  │              │  │              │
│ 4 MF locaux  │  │ 2 MF locaux  │  │ 2 MF locaux  │
└──────────────┘  └──────────────┘  └──────────────┘
        │                  │                  │
        └──────────────────┼──────────────────┘
                           │
                           ▼
                ┌──────────────────┐
                │   g-saas-core    │
                │  5 MF partagés   │
                └──────────────────┘

Hub-and-spoke architecture where each root config orchestrates its local micro-frontends and shares the 5 core micro-frontends across the 3 profiles.

Technologies Used

Frameworks & Libraries

• Single-SPA 5.9.x: Micro-frontend orchestration
• Angular: Main framework
• React: Specific components
• TypeScript: Development language
• RxJS: Reactive programming

UI & Design System

• PrimeNG: Angular UI components
• PrimeFlex: Utility CSS
• Formio: Dynamic form engine
• Chart.js: Data visualization

Build & Tooling

• Webpack 5: Bundler with Single-SPA configuration
• SystemJS: Runtime module loader
• Jest: Unit tests
• ESLint + Prettier: Code quality

Backend & Services

• Firebase: Authentication, Firestore, Storage
• Google Cloud Storage: Micro-frontend hosting
• Sentry: Error monitoring

State Management

• NgRx Store: Angular state management
• ngx-permissions: Permission management

Technical Challenges

Large-Scale Multi-Framework Orchestration

Challenge: Orchestrate 13 micro-frontends developed with Angular and React across 3 distinct applications

Solution:

• Single-SPA architecture with 3 independent root configs
• Import-maps configuration for dependency isolation
• Zone.js management for Angular/React coexistence
• Inter-micro-frontend communication via RxJS and Custom Events

Dependency Sharing

Challenge: Avoid duplication of Angular, RxJS (200+ KB each) across 13 micro-frontends

Solution:

• CDN configuration via import-maps for common dependencies
• Selective bundling with webpack-config-single-spa
• Sharing via SystemJS for dynamic resolution

Independent Deployment

Challenge: Deploy one micro-frontend among 13 without rebuilding the entire platform

Solution:

• 13 independent CI/CD pipelines
• Bundle versioning with cache-busting
• Dynamically generated import-maps post-build
• Granular rollback per micro-frontend

Performance & Scalability

Challenge: Optimize initial load with 13 potential micro-frontends

Solution:

• Lazy loading of non-critical micro-frontends
• Code splitting: bundles < 300KB per micro-frontend
• Preloading of critical resources
• CDN for static assets and common dependencies

Cross-Micro-Frontend Type Safety

Challenge: Share TypeScript types across 13 micro-frontends

Solution:

• Core module (g-saas-core-mf-shared-ts) with type exports
• Build .d.ts files for each micro-frontend
• Type safety maintained via TypeScript strict mode

Results

Architecture

• ✅ 16 applications: 3 orchestrators + 13 micro-frontends
• ✅ 5 modules organized by business domain
• ✅ Hub-and-spoke architecture: 5 core MF shared by 3 profiles
• ✅ Massive reuse: ~40% shared components

Performance

• ✅ Lazy loading: 60% reduction in initial load
• ✅ Code splitting: bundles < 300KB per micro-frontend
• ✅ Time to Interactive: < 3s on desktop
• ✅ CDN caching: optimized common dependencies

Developer Experience

• ✅ Isolated development: each team works independently
• ✅ Hot reload: < 2s for each micro-frontend locally
• ✅ Optimized CI/CD: build & deploy in 5-8 min per micro-frontend
• ✅ Type safety: shared TypeScript types

Business Impact

• ✅ Multi-tenancy: support for thousands of tenants
• ✅ White-labeling: customization per tenant
• ✅ Feature flags: progressive rollout per micro-frontend
• ✅ A/B testing: test versions in parallel

Quality

• ✅ Sentry monitoring: error tracking per micro-frontend
• ✅ Jest unit tests: >70% coverage
• ✅ ESLint + Prettier: standardized code
• ✅ Pre-commit validation with Husky
